Animations

BaseAnimatedPlot

Base class for animated plots that can share a figure and GridSpec.

Parameters:

Name	Type	Description	Default
fig	Figure	Figura principal.	required
grid	GridSpec	Layout de subplots.	required
pos	tuple | int	Posição no GridSpec.	required
fps	int	Frames por segundo.	30
duration	float	Duração da animação.	3.0
filename	str	Nome padrão do arquivo (caso deseje salvar).	'animation.gif'
out_dir	str	Diretório padrão de saída.	'../../out'

animate(frames)

Cria o objeto de animação sem salvar e registra o plot na figura.

save_gif(filename=None)

Salva individualmente o GIF desse plot (caso queira).

ConstellationAnimatedPlot

Bases: BaseAnimatedPlot

Class for plotting signals in the constellation domain, receiving the signals \(d_I\) and \(d_Q\), performing the plot in phase \(I\) and quadrature \(Q\), according to the expression below.

\[ s(t) = d_I(t) + j d_Q(t) \]

Where

• \(s(t)\): Complex signal.
• \(d_I(t)\): In-phase signal.
• \(d_Q(t)\): Quadrature signal.

The constellation plot can be normalized by a normalization factor given by:

\[ \varphi = \frac{\text{A}}{ \sqrt{ \displaystyle \frac{1}{N} \sum_{n=0}^{N-1} \Big( I(n)^2 + Q(n)^2 \Big) } } \]

Where

• \(\text{A}\): Desired amplitude, defined as 1.
• \(\varphi\): Normalization factor.
• \(N\): Number of samples.
• \(I(n)\) and \(Q(n)\): In-phase and quadrature signals.

Parameters:

Name	Type	Description	Default
fig	Figure	Figure object	required
grid	GridSpec	GridSpec object	required
pos	int	Plot position	required
dI	ndarray	In-phase signal	required
dQ	ndarray	Quadrature signal	required

Examples:

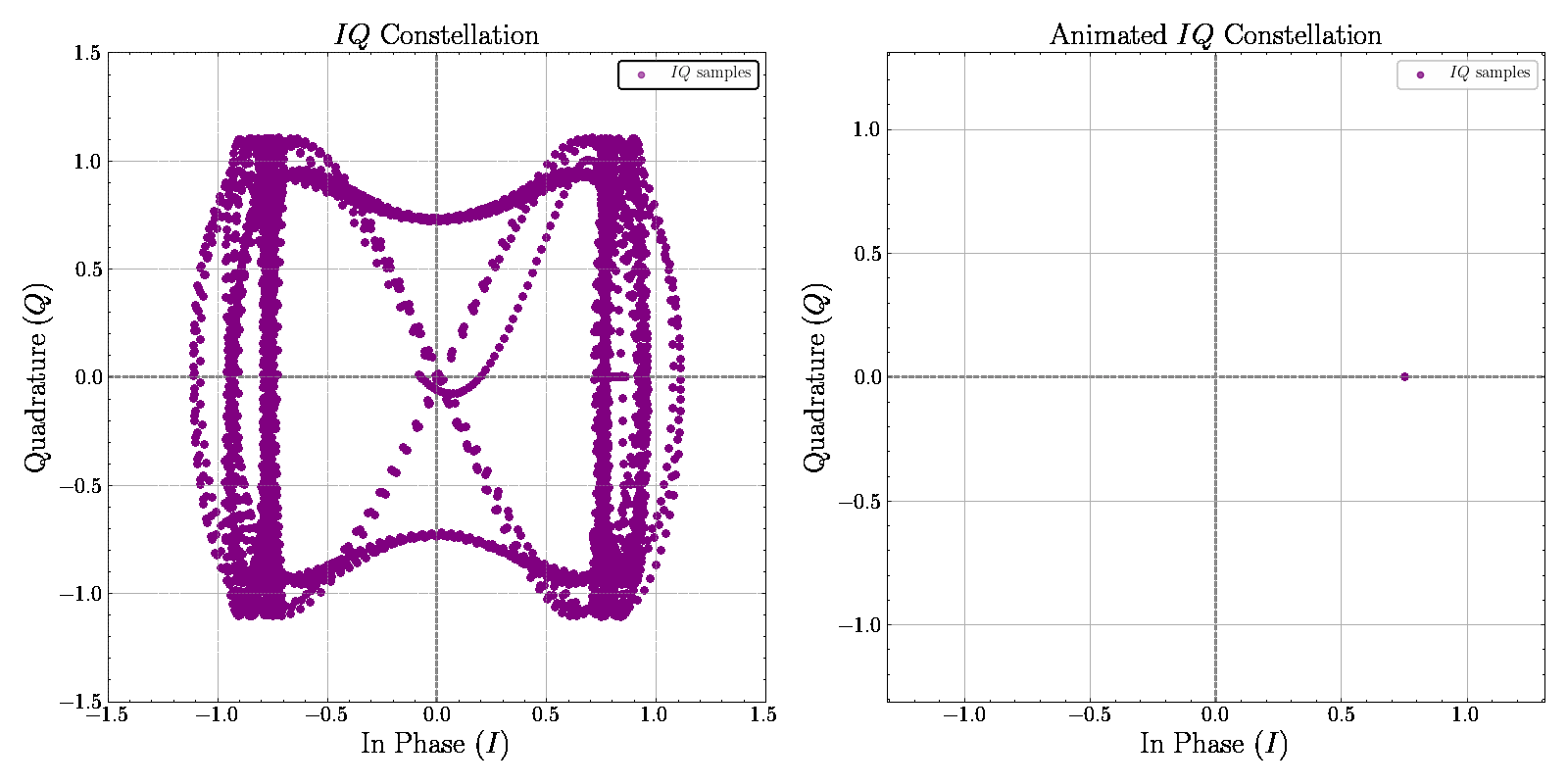

• Modulator Constellation/Phase Example:

create_animation(rows=1, cols=1, figsize=(16, 9))

Creates a figure with GridSpec, returning the fig and grid objects for plotting.

Parameters:

Name	Type	Description	Default
rows	int	Number of rows in the GridSpec	1
cols	int	Number of columns in the GridSpec	1
figsize	Tuple[int, int]	Figure size	(16, 9)

Returns:

Type	Description
	Tuple[plt.Figure, gridspec.GridSpec]: Tuple with the figure and GridSpec objects

save_animation(fig, filename, out_dir='../../media', fps=30)

Saves the figure in <out_dir>/<filename> from the script root directory.

Parameters:

Name	Type	Description	Default
fig	Figure	Matplotlib Figure object	required
filename	str	Output file name	required
out_dir	str	Output directory	'../../media'

Raises:

Type	Description
ValueError	If the output directory is invalid
